Air-Cooling Energy Storage Cabinet 50kW/100kWh | NUUKO
BRAND: NUUKO
ITEM NO.: NK100A-50K/NK215A-100K
ITEM NO.: NK100A-50K/NK215A-100K

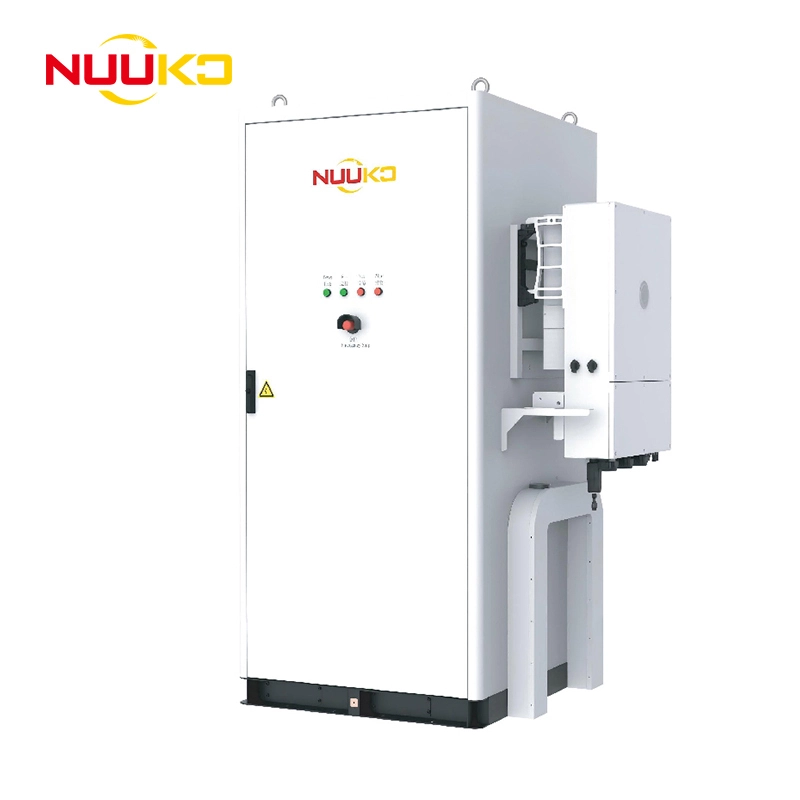

The NUUKO 50kW/100kWh Air-Cooling Energy Storage Cabinet is a compact and highly reliable all-in-one energy storage solution designed for commercial and industrial applications. It integrates advanced LiFePO₄ battery technology with intelligent energy management, enabling efficient power conversion, stable system performance, and seamless integration with solar PV, grid, and diesel generator systems. Built with a strong focus on safety, flexibility, and high efficiency, it ensures optimized energy utilization and continuous power supply for critical loads.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Core Advantage
All-in-One Integrated Design
Integrates battery, PCS, EMS, and thermal management system into a single cabinet, simplifying installation and saving space.
Enhanced Safety Protection
Equipped with a multi-level fire protection system to ensure system stability, reliability, and operational safety.
03
Intelligent Energy Management
Built-in EMS enables real-time monitoring, optimized energy control, and intelligent charge/discharge scheduling for improved efficiency.
04
High Reliability Performance
Ensures stable operation under variable load conditions, delivering consistent power output for critical commercial and industrial applications.
05
Flexible & Scalable Deployment
Supports both on-grid and off-grid operation, allowing flexible configuration for diverse application scenarios.
Product Specifications
| Model | NK215A-100K | NK100A-50K |
| PV | ||
| Maximum input power | 156kW | 75kW |
| maximum input voltage | 1100V | 1000V |
| MPPT operating voltage range/Rated voltage | 180-800V/550V | 180-900V/610V |
| Maximum input current | 32/32A | 36/36/36/36A |
| Maximum short circuit current | 40/40A | 40/40/40/40A |
| MPPT quantity | 2 | 4 |
| MPPT input string count | 5/5 | 2/2/2/2 |
| Battery Side | ||
| Cell Specification | LFP 3.2V/280Ah | |
| Battery RACK Configuration | 1P240S | 1P112S |
| System capacity | 215.04kWh | 100.352kWh |
| Voltage range | 648-864V | 302.4-403.2V |
| Nominal Voltage | 768V | 358.4V |
| Cycle Life | 8000 | |
| Ac grid connection side | ||
| Rated Power | 100kW | 50kW |
| Allowable Grid Voltage Range | 400V(340-436V) | |
| Way of Connection | 3P+N+PE | |
| Allowable Grid Frequency Range | 50/60Hz±2.5Hz | |
| Maximum current output | 167A | 79A |
| Ac off-network side | ||
| AC Rated Power | 100kW | 50kW |
| Allowable Grid Voltage Range | 380V/400V | |
| Way of Connection | 3P+N+PE | |
| Allowable Grid Frequency Range | 50/60 | |
| Maximum current output | 167A | 79A |
| Off-grid switching time | <20ms | <10ms |
| System Parameter | ||
| Dimension(W*D*H) | 2050*1490*2180mm | 1350*1300*2210mm |
| Including airconditioning and hybrid inverter | ||
| Weight | 2600kg | 1600kg |
| System Efficiency | >88% | |
| Environmental Temperature | -20~55℃ | |
| Humidity | ≤95% | |
| Cooling method | Air cooling | |
| Maximum working altitude | 2000m | |
| Fire safety configuration | Aerosol | |
| Communication Interface | Ethernet/CAN/RS485 | |
| Compliant with standards | GB/T 34120，GB/T 36276，IEC62477,IEC62619,IEC63056 | |
Product Certification
Application Scenarios
Commercial Buildings & Business Parks
Industrial & Manufacturing Facilities
Microgrids & Remote Areas
Solar PV + Storage Systems
