High-Efficiency N-Type PV & Integrated Solar Energy Storage Solutions

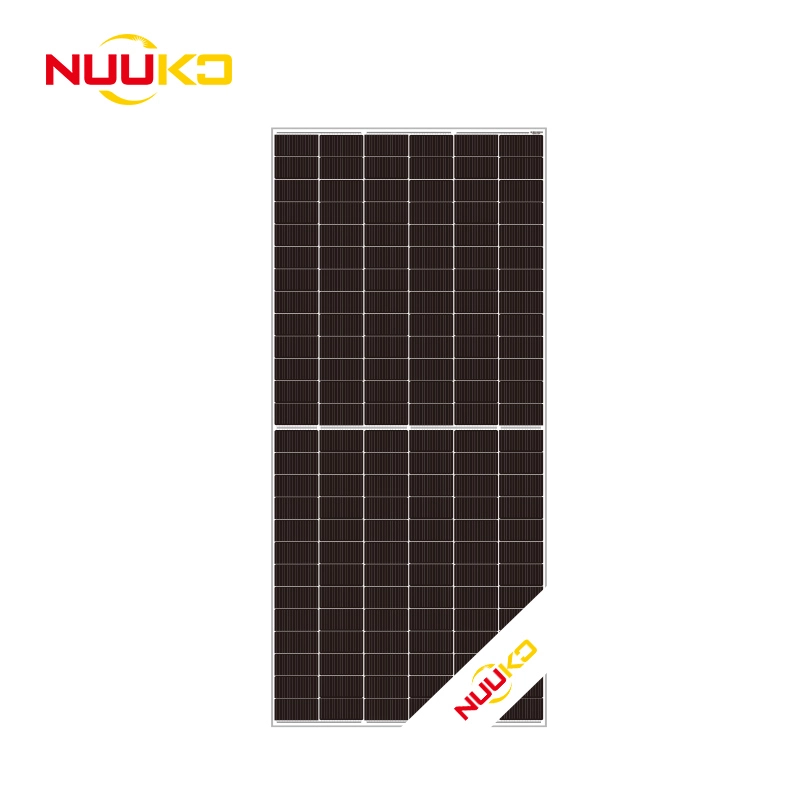

NUUKO 625W-650W N-Type TOPCon Bifacial Double-Glass Solar Module 1

NUUKO 625W-650W N-Type TOPCon Bifacial Double-Glass Solar Module 2

NUUKO 625W-650W N-Type TOPCon Bifacial Double-Glass Solar Module 3

NUUKO 625W-650W N-Type TOPCon Bifacial Double-Glass Solar Module

BRAND: NUUKO
ITEM NO.: NKM625-650N-156BDM10

High Efficiency: Up to 23.5% module efficiency
Bifacial Design: Dual-sided power generation for higher yield
Durable Build: Double-glass structure with corrosion-resistant frame
Low-Light Performance: Reliable output under weak or diffused light
Long-Term Reliability: 12-year product warranty & 30-year linear power warranty

Inquiry

Write a Review

Core Advantage

NUUKO 625W-650W N-Type TOPCon Bifacial Double-Glass Solar Module 4

High Conversion Efficiency

Advanced TOPCon bifacial cells deliver superior energy yield Maximizing power output under diverse operating conditions

High Energy Capture Capability

Stable energy generation in low-irradiance and diffuse light conditions Ensures consistent daily energy harvest across all weather

Superior Durability

Double-glass structure with enhanced mechanical strength and sealing integrity Designed for long-term operation in harsh environments

Advanced Degradation Control

Minimized power loss through Anti-PID and Anti-LID technologies Ensures stable long-term performance and sustained energy yield

Universal Application Scenarios

Optimized module design ensures broad application adaptability Suitable for residential, commercial, and utility-scale PV systems

Product Specifications

Cell Type	N Type Mono-crystalline
Cell Arrangement	156 (6*26)
Weight	34.5KG
Module Dimensions	2465113430mm
Cable Length	4.0mm², ±300mm or Customized length
Front Glass	2.0mm, Anti-Reflection Coating
Back Glass	2.0mm, Heat Strengthened Glass
No.of Bypass Diodes	3/6
Packing Configuration	36pcs/pallet, 576pcs/40HQ
Frame	Anodized Aluminium Alloy
Junction Box	IP68

Module Type	NKM625N-156BDM10		NKM630N-156BDM10		NKM635N-156BDM10		NKM640N-156BDM10		NKM645N-156BDM10		NKM650N-156BDM10
Testing Condition	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Rated output (Pmp/Wp)	625	470	630	474	635	477	640	481	645	485	650	489
Maximum Power Voltage	46.05	42.68	46.2	42.79	46.35	42.9	46.5	43.01	46.65	43.12	46.8	43.23
Maximum Power Current	13.57	11.01	13.64	11.07	13.7	11.13	13.76	11.19	13.83	11.25	13.89	11.31
Open Circuit Voltage	55.75	52.93	55.9	53.06	56.05	53.19	56.2	53.32	56.35	53.45	56.5	53.58
Short Circuit Current	14.27	11.51	14.35	11.57	14.43	11.63	14.51	11.69	14.59	11.75	14.67	11.81
Module efficiency(%)	22.40%		22.50%		22.70%		22.90%		23.10%		23.30%
Power Tolerance (W)	0~+5		0~+5		0~+5		0~+5		0~+5		0~+5
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5 NMOT: Irradiance at 800W/m2, Ambient Temperatue 20°C, Air Mass AM1.5, Wind Speed 1m/s

Electrical Characteristics with Different Rearside Power Gain (Reference to 640 W Front)
Pmax/W	672	704	736	768	800
Vmpp/V	46.5	46.5	46.5	46.5	46.5
Impp/A	14.44	15.14	15.82	16.51	17.2
Voc/V	56.2	56.2	56.2	56.2	56.2
Isc/A	15.24	15.96	16.69	17.41	18.14
Pmax gain	5%	10%	15%	20%	25%

Maximum System Voltage	1000V/1500V DC（IEC）
Operating Temperature	-40°C ~ +85°C
Maximun Series Fuse	30A
Static Loading	Snow Loading: 5400Pa/ Wind Loading: 2400Pa
Protection Class	II
Fire Type	Class C (IEC)
Bifacial	80±5%

NMOT Temperature	45℃±2℃
Temprature Coefficient (Pmax)	-0.29%/℃
Temprature Coefficient (Voc)	-0.25%/℃
Temprature Coefficient (Isc)	0.045%/℃

Product Certification

NUUKO's products undergo strict quality inspections and comply with international standards. Certified by TÜV, DEKRA, UL, CE, IEC, CB, and IECEE, they also hold multiple patents and software copyrights.

Application Scenarios

Desert & High-Irradiation Solar Projects

Integrated Energy Systems (PV + Storage + Microgrid)

Large Commercial & Industrial Rooftop Systems

Utility-Scale Ground-Mounted Solar Power Plants
