6GFM150G-Gel Acid Lead Battery 12V 150Ah

DETAILS:

6GFM Series Battery uses the self-created energy-gathering curve grid technology. Punching grid alloy has high molecular density to make lower internal resistance, better consistency, and more suitable for deep cycle use. The stereoscopic grid structure enhances the lead paste’s surface area of contact, and the grid is dense, challenging to break, and corrosion-resistant, thereby extending the battery’s useful life.

Model Number:	6GFM150G	Length:	484mm
Nominal voltage:	12V	Width:	170mm
Capacity (AH):	150Ah	Heigth:	241mm
Weight:	32.2-42.0kg± 3%	Container Material:	ABS

Mechanical Specifications

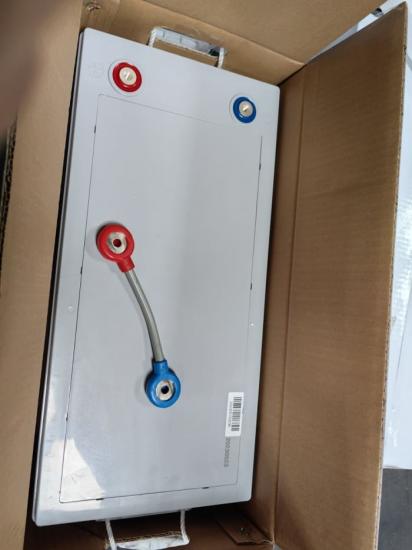

TERMINAL OAPTIONS:

gel lead acid battery a sealed lead acid battery a gel battery

FEATURE:

APPLICATION:

Stereoscopic grid structure

Spider-shape design

Lower internal resistance

Higher corrosion resistance

Longer cycle life and use of life

Higher power density

* Solar and wind power system * Emergency Power System

* Communication equipment * Generator,Power tools

* Telecommunication systems * Generator,Power tools

* Uninterruptible power supplies

* Electric toy car and wheelchairs, etc.

* Marine equipment * Medical equipment
