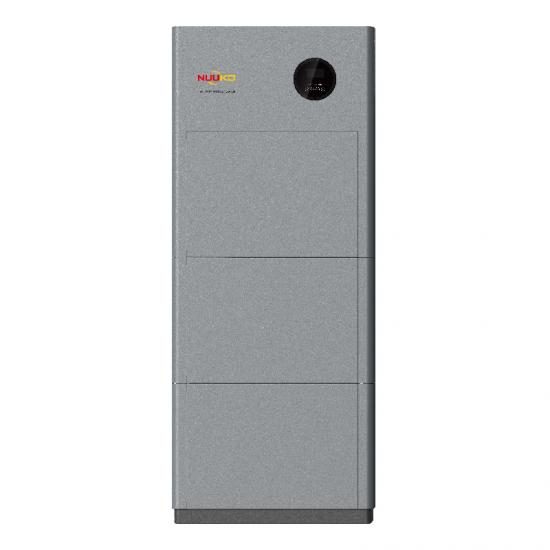

The All-in-One Stackable Solar System is a versatile, efficient, and scalable energy solution that supports a wide range of applications. It enhances energy independence, promotes sustainability, and offers flexibility for both residential and commercial users.
Product Parameters
|
Model |
FS5KS5121 |
FS5KS5122 |
FS5KS5123 |
|
Type |
1 Battery Module |
2 Battery Module |
3 Battery Module |
|
PV Input |
|||
|
Rated Voltage (V) |
350-360 |
||
|
MPPT Voltage Operation Range (V) |
120-500 |
||
|
Max Input Power (W) |
6000 |
||
|
Max Input Voltage (V) |
500 |
||
|
Max Input Current (A) |
18 |
||
|
AC Input & Output (Grid) |
|||
|
Max AC Input Current (A) |
40 |
||
|
Rated Output Power (W) |
5000 |
||
|
Max Output Power (VA) |
5000 |
||
|
Rated Output Current (A) |
21.7 |
||
|
Max Output Current (A) |
23.9 |
||
|
Rated Output Voltage (V) |
220/230/240 |
||
|
THDI |
<3% (Nominal Power) |
||
|
Emergency Output |
|
||
|
Max Output Power (VA) |
5000 |
||
|
Peak Output Power (VA) |
10000 |
||
|
Max Output Current (A) |
16-26.1 |
||
|
Rated Output Voltage (V) |
220/230/240 (+/-0.2%) |
||
|
Output Frequency (Hz) |
50/60 (+/-0.2%) |
||
|
THDU |
<2% |
||
|
Transfer Time (ms) |
<10 |
||
|
Efficiency |
|||
|
Max Battery Discharge Efficiency |
91% |
||
|
Max Charge Efficiency (PV to battery)@ Full load |
98.50% |
||
|
System Parameter |
|||
|
Dimensions (W*D*H) |
674*170*775mm |
674*170*1135mm |
674*170*1535mm |
|
Work Temperature Rang (°C) |
- 20 ~ +60 (Derating @45℃) |
||
|
Storage Temperature (°C) |
-20 ~ +45 |
||
|
Storage RH (%) |
5%~90% (non-condensing) |
||
|
Altitude (m) |
<2000 |
||
|
Ingress Protection |
IP21 |
||
|
Dispaly |
LCD/APP |
||
|
Cooling Method |
Natural cooling |
||
|
Inverter Topology |
Non-isolated |
||
|
Installation |
Floor-mount |
||
|
Battery Pack Specification |
|
||
|
Cell Type |
LFP |
||
|
Cell Configuration |
16S1P |
||
|
Nominal Voltage (V) |
51.2 |
||
|
Nominal Capacity (Ah) |
100 |
||
|
Nominal Energy / Module (Wh) |
5120 |
||
|
System Energy (Wh) |
5120 (1 Module) |
10240 (2 Modules) |
15360 (3 Modules) |
|
Charge Voltage (V) |
58 |
||
|
Max Charging Current (A) |
100 |
||
|
Max Discharging Current (A) |
100 |
||
|
Charge Temperature Range (°C) |
0~45 |
||
|
Discharge Temperature Range (°C) |
-20~60 |
||
|
Storage Temperature Range (°C) |
-20~45 |
||
|
Humidity(%) |
5~95%RH |
||
|
Cooling Method |
Natural cooling |
||
|
Cycle Life (Time) |
≥6000 (80% DOD, Remaining 80%) |
||
|
Communication |
CAN &RS485 |
||
|
Weight (kg) |
67 |
117 |
167 |
Advantage of NUUKO Stackable Solar System FS5KS512X
Built-in 80A Solar Charger
The integrated 80A solar charger optimizes solar energy conversion, eliminating the need for external charge controllers. This simplifies system setup and improves overall efficiency.
Wide MPPT Range (120-500V)
The wide Maximum Power Point Tracking (MPPT) range allows for maximum solar energy capture across different weather conditions and solar panel configurations, enhancing energy output throughout the day.
Dual AC Output
The dual AC output provides flexibility to manage critical and non-critical loads separately. This ensures continuous power for essential devices during outages while efficiently distributing energy to other appliances.
WiFi Monitoring
Real-time monitoring via WiFi enables users to track system performance, energy production, and consumption remotely. This feature enhances control and allows for easy optimization through mobile apps or web platforms.
Feed-in to Grid
The system supports exporting excess energy back to the grid, enabling users to benefit from net metering programs. This reduces energy costs and promotes the efficient use of renewable energy.
Stackable Battery Design
The modular and stackable battery design allows for easy scalability, enabling users to expand energy storage capacity as needed. This flexibility ensures future-proof energy solutions for growing needs.
Application scenarios of NUUKO Stackable Solar System FS5KS512X
Residential Solar Energy Solutions
Homeowners can store solar energy for use during peak demand or power outages, reducing electricity bills and enhancing energy independence. The feed-in-to-grid capability offers additional savings through net metering.
Commercial and Industrial Energy Management
Businesses can optimize energy usage by storing solar power and managing loads efficiently. The dual AC output allows for strategic distribution of power to critical systems and non-essential operations.
Off-Grid and Remote Applications
Ideal for off-grid homes, cabins, and remote facilities, the wide MPPT range ensures efficient solar energy capture even in challenging conditions, providing reliable, off-grid power solutions.
Electric Vehicle (EV) Charging
The system can support EV charging stations by utilizing stored solar energy, reducing reliance on the grid and lowering operational costs. Dual AC output allows for simultaneous charging and other energy uses.
Smart Homes and IoT Integration
WiFi monitoring integrates seamlessly with smart home systems, allowing users to automate energy management, optimize consumption, and monitor performance in real-time.
Microgrids and Community Energy Projects
In microgrid applications, the system provides energy storage and management, supporting local energy distribution and enhancing community resilience and sustainability.
Emergency Backup and Disaster Preparedness
The system provides reliable backup power during outages or emergencies, ensuring continuous operation of essential appliances and systems.
