Specifications
|
Model |
NKI-PV5000-24 |
|
AC Input |
|
|
Rated Input Voltage (VAC)
|
208 / 220 / 230 / 240; L + N + PE |
|
Voltage Range (VAC) |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
Frequency (Hz) |
50 / 60 (Auto Adaptive) |
|
AC Output |
|
|
Rated Capacity (kW)
|
3.6 |
|
Surge Power (kVA) |
5.7 |
|
Voltage (VAC) |
208 / 220 / 230 / 240 |
|
Power Factor (PF) |
1 |
|
Frequency |
50/60Hz±0.1% |
|
Switch Time (ms) |
10 (normal mode) / 10 (UPS mode)
|
|
Wave Form |
Pure Sine Wave |
|
Overload Capacity (Batte Mode) |
60s@102%~110% load; 10s@110%~130% load; 3s@130%~150% load; 0.2s@>150% load |
|
Max. Effciency (Batte Mode) |
92.7%@24VDC |
|
Parallel Quantity |
NA |
|
Charger (PV / AC) |
|
|
Solar Charger Type |
MPPT |
|
Max PV input current / power
|
18A / 5000W |
|
MPPT Range@Operating Voltage (VDC) |
40~450 |
|
Max PV Open Circuit Voltage (VDC) |
500 |
|
Max PV Charge Current (A) |
100 |
|
Max AC Charge Current (A) |
100 |
|
Max. Charge Current (PV + AC) (A) |
100 |
| Battery |
|
|
Normal Voltage (VDC) |
24 |
|
Floating Charge Voltage (VDC) |
27 |
|
Overcharge Protection (VDC) |
30.5 |
|
Batte Type |
Lithium and Lead-acid |
|
Interface |
|
|
HMI |
LCD |
|
Interface |
RS485 / RS232 / USB / Dry Contact |
|
Monitoring |
WiFi (Optional) |
|
General Data |
|
|
Ingress Protection |
IP21 |
|
Operating Temperature |
-10℃~50℃ |
|
Relative Humidity |
5%~95% (Non-condensing) |
|
Storage Temperature |
-15℃~60℃ |
|
Net Weight (kg) |
6.4 |
|
Dimensions (W*H*D) |
420*284*94mm |
|
Max. Operating Altitude |
4000m (Derating above 1000m) |
Advantages of NUUKO Single Phase Off-grid Inverter NKI-PV5000-24
Built-in 100A Solar Charger:
Ensures high-capacity solar energy conversion and efficient charging for larger energy demands.
Wide MPPT Range (40-500V):
Offers compatibility with a wide variety of solar panel configurations, maintaining efficiency even under variable sunlight conditions.
Generator Compatibility:
Enables seamless integration with generators for reliable backup power, ensuring uninterrupted operation.
Complete CE Certification:
Meets international safety and quality standards, ensuring reliability and durability.
Supports Lithium and Lead-Acid Batteries:
Provides flexibility for users to choose the most suitable energy storage solution for their needs.
Lithium Battery Activation:
Protects and optimizes lithium battery performance, extending their lifespan.
Detachable Dust Cover:
Shields internal components from dust and debris, increasing durability and simplifying maintenance.
Feed-into Grid Capability:
Allows excess solar energy to be fed into the grid, enhancing energy efficiency and offering potential economic benefits.
Optional WiFi Monitoring:
Provides real-time monitoring and remote control capabilities, improving user convenience and energy management.
Application scenarios of NUUKO Single Phase Off-grid Inverter NKI-PV5000-24
Residential Solar Power Systems:
Ideal for off-grid homes or households seeking energy independence, providing stable and sustainable power.
Commercial Energy Solutions:
Suitable for small and medium-sized businesses requiring reliable off-grid or backup power solutions.
Emergency Backup Systems:
Ensures critical equipment remains operational during power outages.
Renewable Energy Projects:
Perfect for solar energy installations in remote or rural areas, promoting sustainable development.

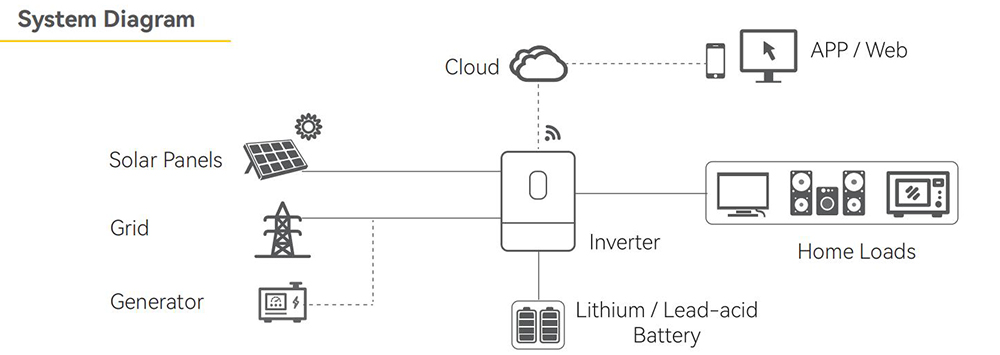

Hybrid Energy Systems:
Integrates easily with generators or grid systems for enhanced flexibility and energy efficiency.
Rural Electrification:
Supports off-grid communities with clean and dependable energy solutions.
The PV5000-24 is a powerful and versatile inverter designed to meet the demands of both residential and commercial users, delivering reliable performance and adaptability for diverse energy requirements.
