Specifications
|
Model |
NKI-PV6000-48 |
|
AC Input |
|
|
Rated Input Voltage (VAC)
|
208 / 220 / 230 / 240; L + N + PE |
|
Voltage Range (VAC) |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
Frequency (Hz) |
50 / 60 (Auto Adaptive) |
|
AC Output |
|
|
Rated Capacity (kW)
|
5 |
|
Surge Power (kVA) |
10 |
|
Voltage (VAC) |
208 / 220 / 230 / 240 |
|
Power Factor (PF) |
1 |
|
Frequency |
50/60Hz±0.1% |
|
Switch Time (ms) |
10 (normal mode) / 10 (UPS mode)
|
|
Wave Form |
Pure Sine Wave |
|
Overload Capacity (Batte Mode) |
60s@102%~110% load; 10s@110%~130% load; 3s@130%~150% load; 0.2s@>150% load |
|
Max. Effciency (Batte Mode) |
93%@48VDC |
|
Parallel Quantity |
9 |
|
Charger (PV / AC) |
|
|
Solar Charger Type |
MPPT |
|
Max PV input current / power
|
18A / 6000W |
|
MPPT Range@Operating Voltage (VDC) |
120~450 |
|
Max PV Open Circuit Voltage (VDC) |
500 |
|
Max PV Charge Current (A) |
80 |
|
Max AC Charge Current (A) |
80 |
|
Max. Charge Current (PV + AC) (A) |
80 |
| Battery |
|
|
Normal Voltage (VDC) |
48 |
|
Floating Charge Voltage (VDC) |
54 |
|
Overcharge Protection (VDC) |
61 |
|
Batte Type |
Lithium and Lead-acid |
|
Interface |
|
|
HMI |
LCD |
|
Interface |
RS485 / RS232 / USB / Dry Contact |
|
Monitoring |
WiFi (Optional) |
|
General Data |
|
|
Ingress Protection |
IP21 |
|
Operating Temperature |
-10℃~50℃ |
|
Relative Humidity |
5%~95% (Non-condensing) |
|
Storage Temperature |
-15℃~60℃ |
|
Net Weight (kg) |
9.5 |
|
Dimensions (W*H*D) |
510*306*115mm (without bracket) |
|
Max. Operating Altitude |
4000m (Derating above 1000m) |
Advantages of NUUKO Single Phase Off-grid Inverter NKI-PV6000-48
Built-in 80A Solar Charger:
Ensures efficient solar energy utilization, reducing dependency on external power sources.
Wide MPPT Range (120-500V):
Enhances compatibility with various solar panel configurations, maximizing energy harvest under different sunlight conditions.
Workable with Generator:
Allows seamless integration with generators, ensuring a reliable backup power solution during low solar availability.
Dual AC Output:
Supports multiple loads simultaneously, providing flexibility in power distribution for diverse applications.
9 Inverters in Parallel:
Enables scalability to meet higher energy demands, suitable for both residential and commercial systems.
Support for Lithium/Lead-acid Battery:
Offers compatibility with various battery types, giving users the flexibility to choose based on their needs and budget.
Lithium Battery Activation:
Simplifies the setup process and ensures the optimal performance of lithium batteries.
Detachable Dust Cover:
Enhances product durability by protecting internal components from dust, ensuring longer operational life.
Feed-into Grid Function:
Allows excess energy to be fed back into the grid, contributing to energy efficiency and potential cost savings.
WiFi Monitoring (Optional):
Provides remote system monitoring and management, offering convenience and real-time control over energy performance.
Application scenarios of NUUKO Single Phase Off-grid Inverter NKI-PV6000-48
Residential Use:
Ideal for homes in off-grid areas, providing a stable and efficient power supply with renewable energy integration.
Commercial Applications: Suitable for small businesses or workshops needing a reliable off-grid power source with scalable capacity.
Backup Power Systems:
Acts as an efficient backup solution during grid outages or in areas with unreliable electricity supply.
Solar Farms:
Can be used in solar energy projects to enhance system efficiency and manage energy distribution.
Rural Electrification:
Perfect for remote locations where grid access is unavailable, enabling sustainable development.

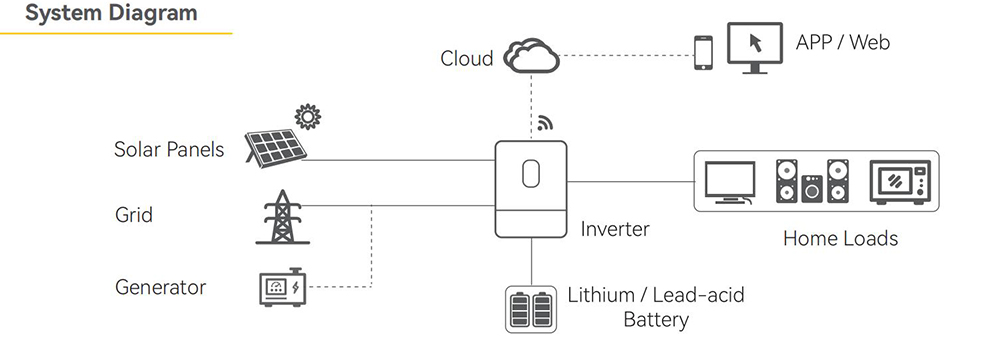

Hybrid Systems:
Combines solar energy with generators or grid inputs for robust and uninterrupted power solutions.
This inverter is a versatile, durable, and efficient choice for diverse energy needs, ensuring sustainability and cost-effectiveness.
