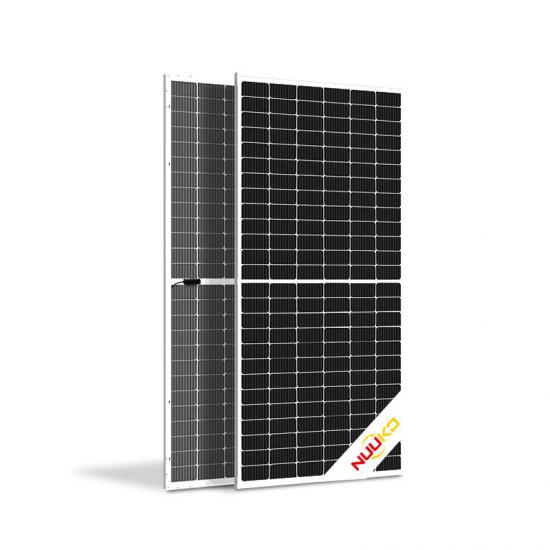

bifacial module 156cells 580W 585W 590W photovoltaic solar panel

  • Brand:

    NUUKO
  • Item NO.:

    NKM570-590M-144 Bifa
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Color:

    Silver
  • Lead Time:

    7days
  • Product weight:

    35KG

Product Name:
NKM 570W-590W 156 Cells 182MM Half-cell High Efficiency Bifacial Solar Panel

Product model: NKM590-156M10
Product Description:

Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively;

Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance;

Lower hot spot risks due to half-cell layout,offers an additional level of safety;

1500V DC voltage of the system,reducing the cost of the system side;

The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%;

Passed the certification test of 5400 Pa snow load and 2400 Pa wind load;


Product Introduction:


Cell Type
Monosyrstalline 182*182mm
Number of cells
156(6*26)
Weight
35KG
Dimensions
2465*1134*35mm
Frame
Anodized Aluminum Alloy
Front Glass
3.2mm Tempered Low Iron Glass
Junction box
IP68
Connector
MC4
Cables
Portrait 300mm/Landscape 1200mm/Customized
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
