G12 model 210mm solar panel 585-610W solar pv module

585W to 610W solar panel,210mm solar cell solar module
  • Brand:

    NUUKO
  • Item NO.:

    NKM585-605M-144
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Color:

    Silver ,Black
  • Lead Time:

    7days
  • Product weight:

    31.5

roduct Name:

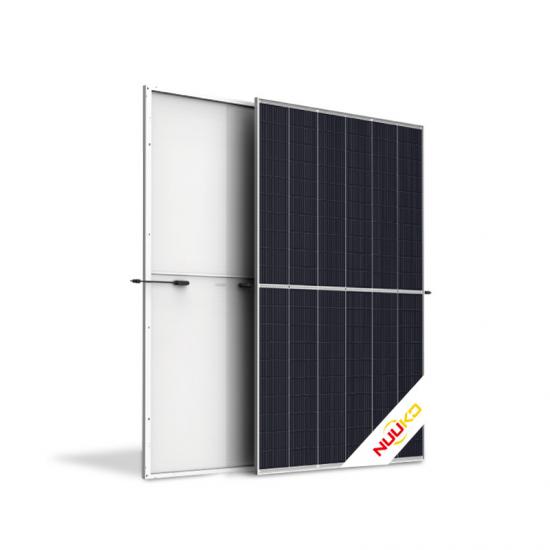

NKM 585W-610W 120 Cells 210MM Half-cell High Efficiency Solar Panel

Product model: NKM600-120G12
Product Description:

Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively;

Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance;

Lower hot spot risks due to half-cell layout,offers an additional level of safety;

1500V DC voltage of the system,reducing the cost of the system side;

The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%;

Passed the certification test of 5400 Pa snow load and 2400 Pa wind load;


Product Introduction:


Cell Type
Monosyrstalline 210*210mm
Number of cells
120(6*20)
Weight
31.5KG
Dimensions
2172*1303*35mm
Frame
Anodized Aluminum Alloy
Front Glass
3.2mm Tempered Low Iron Glass
Junction box
IP68
Connector
MC4
Cables
Portrait 300mm/Landscape 1200mm/Customized

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
