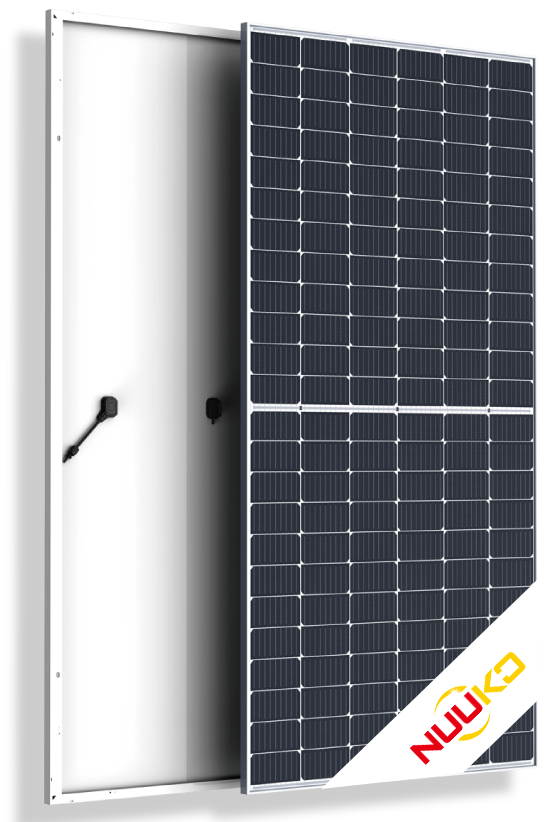

NUUKO monocrystalline half cut cells 540W 550W 555W 182mm M10 Solar Panels

DETAILS
Type of panels : NUUKO PERC Technology Half-Cut Cells * Bifacial * Single-Glass*
Type and no. of cell : Mono-crystalline 144 (6x12)
Maximum system voltage : 1500 (V)
Power range : 530W-550W
Efficiency range : 20.53%-21.31%
Dimensions : 2278 mm x 1134 mm x 30/35 mm
Weight : 27 kg
Frame:Anodized Aluminum Alloy
Front Glass:3.2mm Tempered Low Iron Glass
Junction box:IP68
Connector:MC4
Cables:Portrait 300mm/Landscape 1200mm/Customized
Performance Guarantee : 25 years
Product Warranty : 15 years

  • Brand:

    NUUKO
  • Item NO.:

    NKM550-144M10

SPIRIT  SERIES  182 PERC Half Cell Solar Panel
OEM/ODM 182mm Solar Panels Manufacturer Custom 182mm M10 Solar Panels Supplier

NUUKO focuses on value creation and in the winter of 2020 launches a new generation of high efficiency PV modules,the SPIRIT series-182mm M10 Solar Panels. The new series integrates 182mm large-size silicon wafers with PERC, multi-busbar, half-cell technologies and high-density encapsulation. Technology integration enables the SPIRIT series to increase the efficiency of the module up to 21.1%, and a maximum power to 555W.



Custom M10 Solar Panels PERC double glass Bifacial Solar Panel



IMPROVED RELIABILITY


Compared with larger module products, the SPIRIT series has a number of outstanding characteristics, such as a lower working current and power loss, a lower temperature coefficient, high low irradiance performance, high power output and low hot spot effects.Moreover, it provides for two installation methods according to field conditions: by rails and clamps. In both cases, the SPIRIT series modules are qualified for 5400Pa static load on the front side even when there is no cross-beam support on the back.


1.Half Cell Technology

The half-cut cell design can decrease the power loss by the shadow effectively. The optimized circuit design not only realizes the maximum power output but also assures the reliability of solarpanels.


2.MBB Technology
NUUKO 182mm Solar Panel adopts multi-busbar technology. More busbars of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.




Advantages



10%-30% Additional Power Generation

▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module





Outstanding Low Light Performance

▲ Higher power output even under low-light environments like on cloudy or foggy days.




PID Resistance

▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control




Enhanced Mechanical Load

▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)




Better Temperature Coefficient

▲ Higher power generation under working conditions, thanks to passivating contact cell technology



Wider Applicability

▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area



Zero LID (Light Induced Degradation)

▲ N-type solar cell has no LID naturally which can increase power generation



Lower LCOE

▲ Higher bifaciality, higher power output and lower BOS cost





APPLICABLE TO PROJECT SCENARIOS
166mm M6 Solar Panels Supplier
A Grade 166mm Cell Solar Panels
Custom 182mm M10 Solar Panels


Hot Tags: mounting kits,N Type TOPCON,HJT Technology,TBC Technology,mono half cut solar panels 670W 550w 450w 400w, full cell poly 330W/280W China manufacturers, suppliers, factory, OEM customized, cheap, On Grid Solar System For HomeOff Grid Hybrid Power SystemsSolar Panel 710 Wp5KW 8KW 10KW Solar Hybrid System15KW 20KW Off Grid Solar System,inverter,energy storage battery.


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Dual Glass Solar Panel
bifacial module 156cells 580W 585W 590W photovoltaic solar panel
Product Name: NKM 570W-590W 156 Cells 182MM Half-cell High Efficiency Bifacial Solar Panel Product model: NKM590-156M10 Product Description: Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively; Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance; Lower hot spot risks due to half-cell layout,offers an additional level of safety; 1500V DC voltage of the system,reducing the cost of the system side; The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%; Passed the certification test of 5400 Pa snow load and 2400 Pa wind load; Product Introduction: Cell Type Monosyrstalline 182*182mm Number of cells 156(6*26) Weight 35KG Dimensions 2465*1134*35mm Frame Anodized Aluminum Alloy Front Glass 3.2mm Tempered Low Iron Glass Junction box IP68 Connector MC4 Cables Portrait 300mm/Landscape 1200mm/Customized
156Cells Solar Panel
Mono 182mm Solar Panel 156cells 570W to 590W high power output
Product Name: NKM 570W-590W 156 Cells 182MM Half-cell High Efficiency Solar Panel Product model: NKM590-156M10 Product Description: Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively; Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance; Lower hot spot risks due to half-cell layout,offers an additional level of safety; 1500V DC voltage of the system,reducing the cost of the system side; The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%; Passed the certification test of 5400 Pa snow load and 2400 Pa wind load; Product Introduction: Cell Type Monosyrstalline 182*182mm Number of cells 156(6*26) Weight 31.5KG Dimensions 2465*1134*35mm Frame Anodized Aluminum Alloy Front Glass 3.2mm Tempered Low Iron Glass Junction box IP68 Connector MC4 Cables Portrait 300mm/Landscape 1200mm/Customized
Double glass solar panel
Bifical solar module double glass 530-550W solar panel
Bifacial solar panel,30 years warranty
182mm Solar Panel
NUUKO High quality 182mm M10 144 cells half cut mono solar panels with the power 540W 545W 550W 555W black frame
DETAILS Type of panels : NUUKO PERC Technology Half-Cut Cells * Bifacial * Single-Glass*Black Frame Type and no. of cell : Mono-crystalline 144 (6x12) Maximum system voltage : 1500 (V) Power range : 530W-550W Efficiency range : 20.53%-21.31% Dimensions : 2278 mm x 1134 mm x 30/35 mm Weight : 27 kg Frame:Anodized Aluminum Alloy Front Glass:3.2mm Tempered Low Iron Glass Junction box:IP68 Connector:MC4 Cables:Portrait 300mm/Landscape 1200mm/Customized Performance Guarantee : 25 years Product Warranty : 15 years
182mm Solar Panel
NUUKO PERC technology Custom half cut 182mm cells M10 double glass bifacial Solar Panels for home system
DETAILS Type of panels : NUUKO PERC Technology, Half-Cut Cells * Bifacial * Double-Glass* Type and no. of cell : Mono-crystalline 144 (6x12) Maximum system voltage : 1500 (V) Power range : 530W-550W Efficiency range : 20.53%-21.31% Dimensions : 2278 mm x 1134 mm x 30/35 mm Weight : 31 kg Frame:Anodized Aluminum Alloy Front Glass:3.2mm Tempered Low Iron Glass Back Glass: 2.0mm (0.08 inches) Glazed Semi-tempered Glass Junction box:IP68 Connector:MC4 Cables:Portrait 300mm/Landscape 1200mm/Customized Performance Guarantee : 25 years Product Warranty : 15 years
182mm Solar Panel
NUUKO 182mm 10BB Mono 550 watt Solar Panel With Factory Price for OEM projects
DETAILS Type of panels : NUUKO PERC Technology Half-Cut Cells * Bifacial * TRANSPARENT BACKSHEET* Type and no. of cell : Mono-crystalline 144 (6x12) Maximum system voltage : 1500 (V) Power range : 530W-550W Efficiency range : 20.53%-21.31% Dimensions : 2278 mm x 1134 mm x 30/35 mm Weight : 27 kg Frame:Anodized Aluminum Alloy Front Glass:3.2mm Tempered Low Iron Glass Junction box:IP68 Connector:MC4 Cables:Portrait 300mm/Landscape 1200mm/Customized Performance Guarantee : 25 years Product Warranty : 15 years
210mm Solar Panel
G12 model 210mm solar panel 585-610W solar pv module
585W to 610W solar panel,210mm solar cell solar module
30years power warranty 210mm solar panel
Bifacial solar panel 585W to 605W 210mm solar cell solar module
Product Name: NKM 585W-605W 120 Cells 210MM Half-cell High Efficiency Bifacial Solar Panel Product model: NKM600-120G12 Product Description: Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively; Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance; Lower hot spot risks due to half-cell layout,offers an additional level of safety; 1500V DC voltage of the system,reducing the cost of the system side; The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%; Passed the certification test of 5400 Pa snow load and 2400 Pa wind load; Product Introduction: Cell Type Monosyrstalline 210*210mm Number of cells 120(6*20) Weight 35KG Dimensions 2172*1303*35mm Frame Anodized Aluminum Alloy Front Glass 3.2mm Tempered Low Iron Glass Junction box IP68 Connector MC4 Cables Portrait 300mm/Landscape 1200mm/Customized
