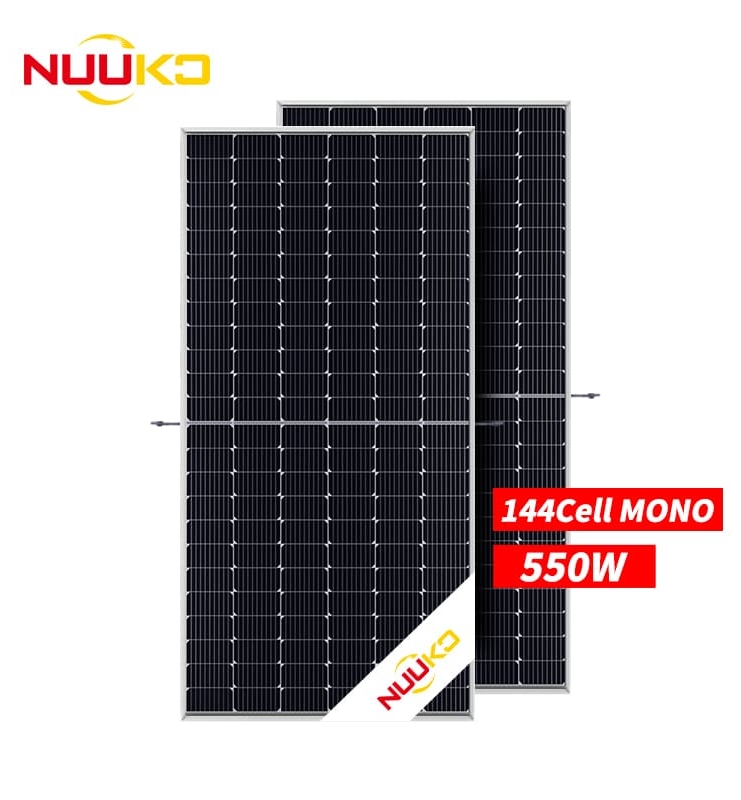

NUUKO 182mm 10BB Mono 550 watt Solar Panel With Factory Price for OEM projects

DETAILS
Type of panels : NUUKO PERC Technology Half-Cut Cells * Bifacial * TRANSPARENT BACKSHEET*
Type and no. of cell : Mono-crystalline 144 (6x12)
Maximum system voltage : 1500 (V)
Power range : 530W-550W
Efficiency range : 20.53%-21.31%
Dimensions : 2278 mm x 1134 mm x 30/35 mm
Weight : 27 kg
Frame:Anodized Aluminum Alloy
Front Glass:3.2mm Tempered Low Iron Glass
Junction box:IP68
Connector:MC4
Cables:Portrait 300mm/Landscape 1200mm/Customized
Performance Guarantee : 25 years
Product Warranty : 15 years

  • Brand:

    NUUKO
  • Item NO.:

    NKM550-144M10BTB


SPIRIT  SERIES  182 PERC Half Cell Solar Panel


OEM/ODM 182mm Solar Panels Manufacturer Custom 182mm M10 Solar Panels Supplier

NUUKO focuses on value creation and in the winter of 2020 launches a new generation of high efficiency PV modules,the SPIRIT series-182mm M10 Solar Panels. The new series integrates 182mm large-size silicon wafers with PERC, multi-busbar, half-cell technologies and high-density encapsulation. Technology integration enables the SPIRIT series to increase the efficiency of the module up to 21.1%, and a maximum power to 555W.

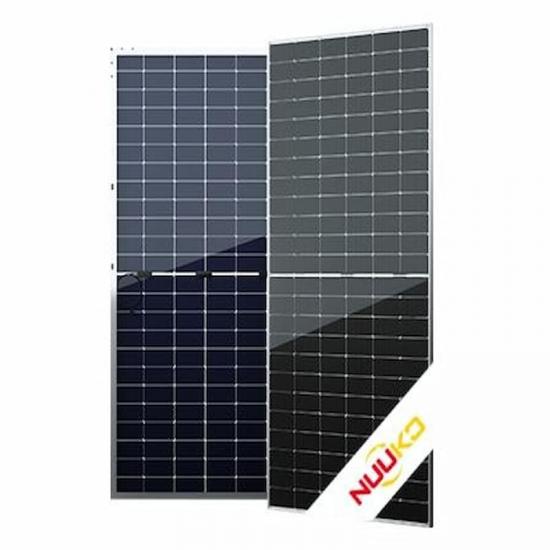

Custom M10 Solar Panels PERC double glass Bifacial Solar Panel




IMPROVED RELIABILITY



Compared with larger module products, the SPIRIT series has a number of outstanding characteristics, such as a lower working current and power loss, a lower temperature coefficient, high low irradiance performance, high power output and low hot spot effects.Moreover, it provides for two installation methods according to field conditions: by rails and clamps. In both cases, the SPIRIT series modules are qualified for 5400Pa static load on the front side even when there is no cross-beam support on the back.





1.Half Cell Technology

The half-cut cell design can decrease the power loss by the shadow effectively. The optimized circuit design not only realizes the maximum power output but also assures the reliability of solarpanels.


2.MBB Technology
NUUKO 182mm Solar Panel adopts multi-busbar technology. More busbars of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.





Advantages




10%-30% Additional Power Generation

▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module





Outstanding Low Light Performance

▲ Higher power output even under low-light environments like on cloudy or foggy days.




PID Resistance

▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control




Enhanced Mechanical Load

▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)




Better Temperature Coefficient

▲ Higher power generation under working conditions, thanks to passivating contact cell technology



Wider Applicability

▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area



Zero LID (Light Induced Degradation)

▲ N-type solar cell has no LID naturally which can increase power generation



Lower LCOE

▲ Higher bifaciality, higher power output and lower BOS cost





APPLICABLE TO PROJECT SCENARIOS
