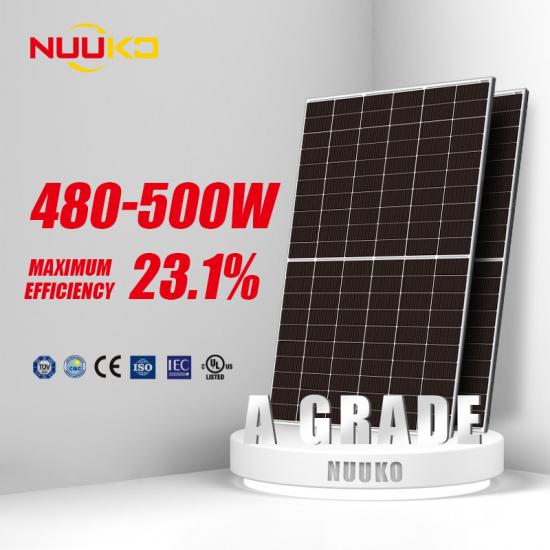

480W-500W N-Type TOPCon Bifacial Double-Glass Solar Module

High Efficiency: Up to 23.1% module efficiency

Bifacial Design: Dual-sided power generation for higher yield

Durable Build: Double-glass structure with corrosion-resistant frame

Low-Light Performance: Reliable output under weak or diffused light

Long-Term Reliability: 12-year product warranty & 30-year linear power warranty

Brand:
NUUKO
Item NO.:
NKM480-500N-120BDM10

Product Advantages

Core Advantage

High Conversion Efficiency

Advanced TOPCon bifacial cells deliver superior energy yield Maximizing power output under diverse operating conditions

High Energy Capture Capability

Stable energy generation in low-irradiance and diffuse light conditions Ensures consistent daily energy harvest across all weather

Superior Durability

Double-glass structure with enhanced mechanical strength and sealing integrity Designed for long-term operation in harsh environments

Advanced Degradation Control

Minimized power loss through Anti-PID and Anti-LID technologies Ensures stable long-term performance and sustained energy yield

Universal Application Scenarios

Optimized module design ensures broad application adaptability Suitable for residential, commercial, and utility-scale PV systems

Product Specifications

Mechanical Specifications
Electrical Specifications
Maximum Ratings
Temperature Characteristics

Cell Type	N type Mono-crystalline
Cell Arrangement	120 (6*20)
Weight	27KG
Module Dimensions	1908113430mm
Cable Length	4.0mm², ±300mm or Customized length
Front Glass	2.0mm,Anti-Reflection Coating
Back Glass	2.0mm, Heat Strengthened Glass
No.of Bypass Diodes	3/6
Packing Configuration	36pcs/pallet, 864pcs/40HQ
Frame	Anodized Aluminium Alloy
Junction Box	IP68

Module Type	NKM480N-120BDM10		NKM485N-120BDM10		NKM490N-120BDM10		NKM495N-120BDM10		NKM500N-120BDM10
Testing Condition	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Rated output (Pmp/Wp)	480	362	485	366	490	370	495	374	500	377
Maximum Power Voltage(Vmpp/V)	35.6	33.1	35.8	33.3	35.9	33.4	36.1	33.6	36.2	33.7
Maximum Power Current(Impp/A)	13.48	10.95	13.55	11.01	13.65	11.07	13.71	11.13	13.81	11.19
Open Circuit Voltage(Voc/V)	42.9	40.7	43.1	40.8	43.2	40.9	43.4	41.1	43.5	41.2
Short Circuit Current(Isc/A)	14.27	11.58	14.34	11.65	14.41	11.72	14.48	11.79	14.55	11.86
Module efficiency(%)	22.2%		22.4%		22.6%		22.9%		23.1%
Power Tolerance (W)	0~+5		0~+5		0~+5		0~+5		0~+5

BIFACIAL OUTPUT-REARSIDE POWER GAIN

5%	Maximum Power(Pmax)	504	509	515	520	525
5%	Module Efficiency STC (%)	23.3%	23.5%	23.8%	24.0%	24.3%
15%	Maximum Power(Pmax)	552	558	564	569	575
15%	Module Efficiency STC (%)	25.5%	25.8%	26.1%	26.3%	26.6%
25%	Maximum Power(Pmax)	600	606	613	619	625
25%	Module Efficiency STC (%)	27.7%	28.0%	28.3%	28.6%	28.9%

Maximum System Voltage	1500V DC（IEC）
Operating Temperature	-40°C ~ +85°C
Maximun Series Fuse	25A
Static Loading	Snow Loading: 5400Pa/ Wind Loading: 2400Pa
Protection Class	II
Fire Type	Class C (IEC)
Bifacial	80±5%

NMOT Temperature	45℃±2℃
Temprature Coefficient (Pmax)	-0.29%/℃
Temprature Coefficient (Voc)	-0.25%/℃
Temprature Coefficient (Isc)	0.045%/℃

Product Certification

NUUKO's products undergo strict quality inspections and comply with international standards. Certified by TÜV, DEKRA, UL, CE, IEC, CB, and IECEE, they also hold multiple patents and software copyrights.
